Fengfan Electroplating 267ml Hull Cell Testing Equipment Miniature Plating Unit

Product Overview

A Hull cell is the smallest piece of metal electroplating equipment that still tells you something useful about a working bath. This one is built as a miniature plating unit: a transparent cell, an anode and a cathode panel that collects a deposit across the whole current density range in a single run, holding 267 ml of solution.

Fill the cell with a sample of the bath, plate a panel for the time your method calls for, and read the result. Bright, semi-bright and burnt zones sit side by side on one small plate, so the behaviour of the solution at high, medium and low current density is visible without touching the production line. Plating shops use it to keep a bath in balance, formulation labs use it to compare additive packages, and QA benches use it to check that a new drum of chemistry behaves like the last one.

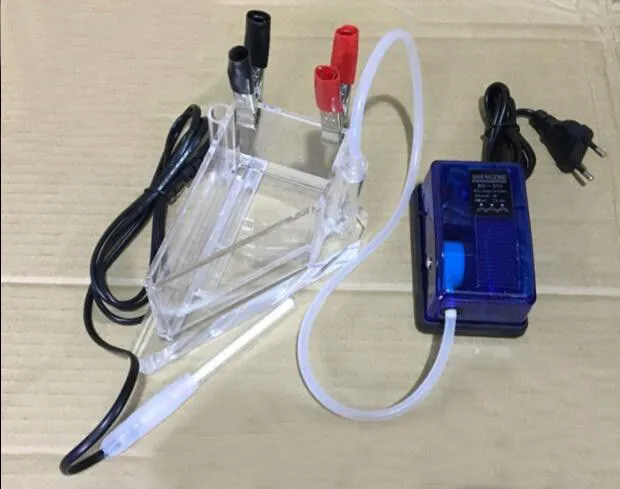

The unit arrives with heating, air agitation, a dedicated pump, a thermometer, an air trachea and two test clips, so the sample can be held at working temperature and kept moving for the length of the run. Everything stays on the bench: no tank space, no production current, no scrapped parts.

Hull Cell Principle

• The whole current density range on one plate. The cathode sits at an angle to the anode, so the distance between them changes along its length. Current density is highest where the gap is smallest and lowest where it is widest, and the deposit records that gradient in a single panel.
• Addition agents. Brightener and leveller response in nickel plating shows up as the difference between a fully bright panel and one that hazes or dulls in the mid-current band, often before a wet analysis number moves.
• Impurities. Contamination usually announces itself at one end of the panel first: burning and roughness at high current density, dark or skipped deposit at low current density, pitting across the middle.
• Purification treatments. Plate a panel before and after a treatment and you can see whether it removed what it was meant to remove instead of assuming it did.
• A partner to wet analysis, not a replacement. A titration tells you how much of something is in the bath. The panel tells you what the bath does with it.
• Broad coverage. Practically every plating solution can be controlled or evaluated to some degree with a Hull cell, and for many effects of additives and impurities there is no other quick method.
• Where it fits. A standard wet analysis gives numbers; the panel shows what those numbers mean for the electroplating process that is actually running.

Specifications & Included Parts

Heating and Air Agitation

• Heat inside the cell. Production baths run warm, and a panel plated cold describes the wrong bath. The heating element brings the sample up to the working temperature in the cell itself, so the deposit forms under conditions close to those the parts meet.
• Air agitation through the trachea. Moving the solution keeps fresh electrolyte at the panel surface instead of letting it deplete there, and it matches the agitation used on an agitated line. The panel reflects a stirred bath rather than a still one.
• A dedicated pump for the test. The sample is circulated by its own pump rather than borrowed from the plant's filtration loop, so no other electroplating equipment has to be taken out of service for a check.
• Temperature read where it matters. The supplied thermometer sits in the test itself, not at the tank, which counts when the cell is on a bench well away from the line.
• Two test clips. Firm contacts for the anode and the cathode panel, so a loose connection is not mistaken for a plating fault.
• One rig, quick to set up. Heat, agitation, circulation and connections belong to the same small assembly, which means a check can be run between jobs instead of being scheduled as a project.

Construction and Design

This is not delicate laboratory glassware — it comes from electroplating equipment suppliers who build it to be handled. The body is transparent and resistant to chemical corrosion, so the deposit can be watched while it forms: gassing, burning, adhesion failure and the first sign of haze are visible as they happen rather than after the panel is stripped. Adjustable current settings let the same unit be set up for different baths and different test conditions without changing hardware.

Repeatability comes from keeping the geometry fixed. The same cell, filled the same way and run at the same current and temperature, produces panels that can be compared honestly with last month's or with a colleague's — which is the whole point of a bench test. The unit is compact enough for a small lab or a corner of the shop floor, and simple enough for a technician to set up and start using without a commissioning visit.

Accurate Process Control

• Bath composition. See where the brightener and leveller balance sits in a nickel plating bath before adding more of either — over-addition is a common and expensive habit.
• Current density window. The panel shows where the deposit is acceptable and where it burns or dulls, so the usable range of the bath is visible rather than assumed.
• Temperature as a set variable. With heating in the cell, temperature is something you choose for the test and record, not something the room decides for you.
• Defects caught early. A drifting bath usually gives a warning on a panel long before it gives rejected parts — this is the point in the electroplating process where a correction remains cost-effective.
• Consistency between operators. The same procedure, the same cell and the same recorded conditions make one shift's panel comparable with the next.
• A physical record. Panels can be labelled with bath, current and time and kept as the history of the solution, which is more useful in an investigation than a memory of how the tank looked last week.

Cost-Effective Bath Testing

Booking a production tank to answer a bench question is expensive in ways that rarely appear on a purchase order: line time, chemistry, scrap and the risk of sending suspect work downstream. A cell test costs a sample of solution and a few minutes of a technician's time.

That changes what a plant is willing to check. A new additive package can be compared with the current one before anyone commits a tank to it. A reformulated bath can be plated on a panel before the first part goes in. A new drum of brightener can be run against the previous drum, so a batch that behaves differently is found at goods-in rather than in the middle of a customer order. Because the cell takes only a small sample, even an expensive bath is tested in millilitres rather than litres.

For an industrial metal plating operation, that is the practical arithmetic: the same information, gathered earlier, at a fraction of the disruption.

R&D, Quality Control and Troubleshooting

• Formulation work. Compare candidate additive packages side by side under identical current, temperature and agitation, and see which one gives the wider bright range.
• Incoming chemical checks. Plate a panel with a new delivery of brightener, carrier or leveller against the drum already in use, and the difference appears before the tank does.
• Routine monitoring. Run a panel on a fixed schedule, and whenever something in the tank looks wrong, so an industrial metal plating line has a baseline to compare against.
• Adhesion and blistering complaints. A panel helps separate a bath problem from a substrate or pretreatment problem, which decides who investigates next.
• Uneven coating and burnt high-current areas. The panel shows where the failure starts and how far it extends, so the next addition can be aimed rather than guessed.
• After a purification step. Confirm the treatment did its job before the metal plating process restarts.
• Supplier or product changes. Verify that a replacement behaves like the material it replaces, on the panel, before it enters a live metal electroplating bath.

Training and Demonstration

Technical institutes and in-house training programmes use the Hull cell because it makes an abstract idea visible. Current density is difficult to explain on a whiteboard; on a panel it becomes a bright band, a dull band and a burnt edge, all on one small plate. A trainee who has plated a panel understands why a complex part burns on its edges and stays dull in a recess long before meeting that problem on the line.

The unit is small enough for a teaching bench, and one cell serves a whole class through a session. It is also a fair demonstration tool for zinc nickel plating and other alloy systems, where the difference between a well-balanced bath and a marginal one is easy to see but hard to describe. Because it is the same instrument the plant laboratory uses, what a trainee learns on it transfers directly to the control routine they will run afterwards.

Compatible Plating Processes

• Zinc nickel plating. Alloy baths show their working window clearly on a panel; the bright range and the first signs of burning are easy to compare before and after an addition.
• Zinc baths, acid and alkaline. Useful for watching brightener response and for checking how a bath behaves at the current densities the work actually uses.
• Acid copper. Brightness, levelling and the high-current edge are all visible on one plate.
• Nickel plating. Levelling and brightness response, plus the point at which the deposit starts to burn.
• Decorative, functional and industrial coatings. The same panel test serves any metal electroplating bath where deposit appearance and current density range decide the result.
• Electrolytic baths only. The cell works by passing a current, so it is used with electrolytic solutions. An electroless nickel bath has no current to vary across the panel and is controlled with different tests.

Test Procedure

1. Draw a representative sample from the working bath — at operating temperature and from a point that reflects the tank rather than a settled corner.
2. Fill the cell to its mark and bring the sample to the working temperature with the heating element.
3. Fit the anode and the cathode panel into the two test clips and connect the air trachea.
4. Set the current for the test you are running and switch on the pump so the solution circulates for the whole run.
5. Plate for the time your method specifies, then remove the panel, rinse it and dry it.
6. Read the panel from the high-current end to the low-current end, noting burning, haze, dullness, pitting and adhesion.
7. Record bath, temperature, current and time alongside the panel so it can be compared with the next one.

Ordering and Delivery

• Minimum order quantity: varies by chemical and is confirmed with our sales team per order.
• Payment: 100% T/T in advance.
• Lead time: 2 weeks.
• Packing: 10 kg/box; 25 kg or 50 kg/bag; 20 kg/25 kg/30 kg/200 kg/drum; 1000 kg/IBC drum.
• Shipping: per the terms agreed in the current contract.
• Warranty: an inspection certificate is issued after delivery, stating the batch number and warranty period.
• Before you order: tell us the bath system, the working temperature and the current density range of your industrial metal plating line, so the configuration and the test conditions can be checked against the job the cell will actually do.
• Spares: test clips, thermometers and air tracheas are the parts that wear; ask your sales contact about spare parts when you place the order.

Technical Support & Model Matching

Choosing the right match is where most sourcing decisions stall. As a trading supplier, we keep one point of contact from first enquiry to after-sales: tell us what you are making and the conditions you work under, and we shortlist the closest matches from our supplier network, compare specifications and arrange samples before you commit to a bulk order. If something does not behave as expected, we work with the supplying partner on the cause and a practical fix, and stay with the case until it is settled. Email, WeChat or WhatsApp enquiries get a reply within 24 hours.
