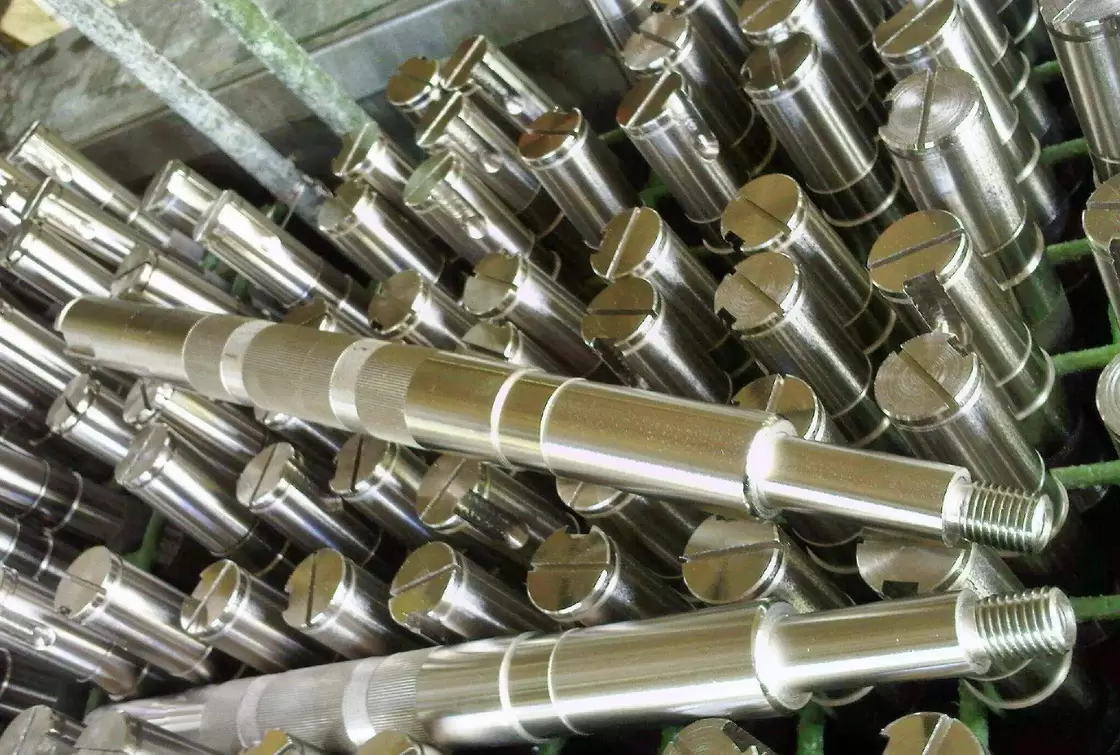

FF-6000 is a bright, medium-phosphorus electroless nickel plating process built for production baths that have to stay predictable shift after shift. The electroless nickel coating lands smooth, uniform and bright, and the phosphorus level puts it in the hardness and wear bracket rather than the purely decorative one. Metal and non-metal substrates both run in the same chemistry, so a shop can cover steel parts, castings and non-metallic work without building a separate line for each.
The reaction is driven by chemical reduction rather than by current, so an electroless plating process is judged on bath chemistry — metal content, reducing power, temperature and pH — instead of on amps per square decimetre. That is also why every control value has a working range and an optimum point rather than a single set value: the bath is managed inside a window, not switched on at a number.
The process is supplied as a set of electroless nickel plating chemicals: FF-6000A and FF-6000B for make-up, plus FF-6000D for replenishment. Control is by straightforward wet analysis of nickel metal and reducer, together with pH, so an operator on an industrial metal plating line can hold the bath without a specialist standing over it.
| Property | Value |
|---|---|
| Density | 8.1 g/cm³ |
| Phosphorus content | 6–9% |
| Hardness, as plated | 525–600 HK100 |
| Hardness after 1 hour at 400 °C | 850–950 HK100 |
| Wear resistance, as plated | 16–20 TWI |
| Wear resistance after 1 hour at 400 °C | 10–14 WI |
| Magnetic behaviour | Micro-magnetic |
| Electrical impedance | 70–110 μΩ/cm |
| Salt spray, ASTM B117, coating thickness 25.4 μm | >96 hours |
| Parameter | Operating range | Optimum |
|---|---|---|
| Nickel metal | 5.4–6.3 g/L (90–105% activity) | 6.0 g/L (100% activity) |
| Reducer (carried in FF-6000B and FF-6000D) | 27–33 g/L (90–110% activity) | 30 g/L (100% activity) |
| Temperature | 85–91 °C | 88 °C |
| pH | 4.7–5.2 | 5.0 |
| Plating speed | 15–20 μm/hr | 18 μm/hr |
| Loading capacity | 0.25–2.5 dm²/L | 1.2 dm²/L |
An electroless nickel plating solution is only cost-effective if it stays in the tank. FF-6000 tolerates the contamination that normally forces an early rebuild — metal dragged in from pre-treatment, traces of the substrate itself, and the build-up that comes with heavy loading — which is why it is long-life rather than merely fast. In practice that means fewer make-ups across a year, less downtime for a tank rebuild, and a nickel phosphorus plating bath that keeps its brightness through a long production run instead of fading in the last week before replacement.
Tolerance is not immunity. Contamination still accumulates, and the point of the analysis routine is to catch it before it reaches the work. When drag-in is heavy or a bath has run a long stretch without attention, the electroless nickel coating shows it first as haze or patchy brightness rather than as a thickness problem — a useful early warning for anyone checking parts as well as numbers.
Choosing the right match is where most sourcing decisions stall. As a trading supplier, we keep one point of contact from first enquiry to after-sales: tell us what you are making and the conditions you work under, and we shortlist the closest matches from our supplier network, compare specifications and arrange samples before you commit to a bulk order. If something does not behave as expected, we work with the supplying partner on the cause and a practical fix, and stay with the case until it is settled. Email, WeChat or WhatsApp enquiries get a reply within 24 hours.
Often it can, and on parts with recesses or internal surfaces it usually gives better coverage. On the plant side the change is simpler than it looks: no rectifier and no rack contact are needed to drive deposition, but the bath has to be analysed on a routine rather than merely topped up. Run a trial part against your own thickness target before switching a live job over.
The electroless nickel plating solution is unchanged; what changes is the preparation. Aluminium alloys and non-metal substrates each need a pre-treatment suited to that material before the part goes into the bath, and the electroless nickel plating chemicals cannot make up for a pre-treatment that is wrong for the substrate. Send us the alloy or the polymer and we will confirm the sequence.
Only if the duty calls for it. Heat treatment is used when the service condition needs a harder surface and lower wear loss than the as-plated electroless nickel coating gives; hardness and wear are quoted for both the as-plated and the heat-treated condition. It also affects the substrate, so confirm the cycle against your alloy and your dimensional tolerance before treating a production lot.
Usually yes. The tank, the heating and the analysis routine are the main additions, and the pre-treatment has to be set for the substrate rather than inherited from the old bath. Run a trial part and compare thickness and appearance side by side before you move a live order.
More often than not it is balance rather than contamination: metal and reducer drifting apart, pH sitting outside its window, or the temperature sagging under a heavy load. Dullness in a nickel phosphorus plating bath also follows drag-in from a badly rinsed pre-treatment, which is why the analysis log is more useful than a single reading. On an industrial metal plating line running several job types, check the bath before you touch the pre-treatment.
Parts that rub, slide or take repeated contact, and parts whose coating cannot be reworked once it is on. A medium-phosphorus layer is hard as plated and gains more when it is heat treated; for pure corrosion duty with no wear component, the same bath is often run without the heat-treatment step.
