Fengfan Cyanide-free Hard Silver Electroplating Process FF-7806

Product Overview

A hard silver bath for contacts that have to keep working after thousands of mating cycles. The process is built on silver nitrate with three liquid components — the A and B additives and the Mu make-up — and it runs at an alkaline pH at ordinary room temperature, so an existing silver line needs no extra heating or cooling capacity to take it. What comes out is a bright to semi-bright deposit in the hard-silver hardness band, not the soft, smeary finish a decorative silver plating bath leaves behind.

We supply it to connector makers, switchgear plants and job shops that plate current-carrying parts, on rack or barrel equipment. The point of the bath is the combination: silver's conductivity and solderability with enough hardness that the contact does not gall. And because there is no free cyanide in it, the plating solution can be handled, rinsed and treated without the gas hazard and the hypochlorite detox stage that come with a cyanide silver line.

Replacing an old cyanide bath rather than installing a new one? The change is mostly cleaning: tanks, filters, pipework and racks must be free of cyanide residue before the first make-up. Anodes, rinses, anti-tarnish and drying all stay as they are.

Deposit Properties

• Hard silver, not decorative silver. The deposit sits in the hard-silver band, well above conventional soft silver, so spring-loaded terminals and sliding contacts resist galling and fretting instead of smearing under load.
• High-purity silver. Conductivity stays where a contact needs it, and contact resistance holds steady through service life rather than climbing as the surface oxidises.
• Brightness across the whole window. The bath holds a semi-bright to fully bright finish from the low end of the current-density range to the top, so parts on the same rack come out matched instead of patchy.
• Throwing and covering power. Internal threads, blind holes and the inside of a barrel load receive silver — which is exactly where a thin or missing deposit starts a corrosion cell.
• Solderable and slow to discolour. The surface takes solder without aggressive flux, and it keeps its appearance in storage, which matters when plated contacts sit in a warehouse before assembly.
• Wear where soft silver plating fails. A refined grain structure resists the abrasion that turns a soft coating into a resistive film on a slip ring or a brush face.

Process Specifications

Bath Make-Up & Process Sequence

1. Start from a clean PP or PVC tank. A tank, filter set or pipe run that last held a cyanide solution has to be leached and rinsed until no residue remains before anything else goes in.
2. Fill roughly two thirds of the working volume with water, add the Mu component and stir, then dissolve the silver nitrate, then the A and B additives in that order. Top up and mix thoroughly.
3. Check the plating solution's pH and temperature against the specification and correct them inside the window before the first part goes in.
4. Pre-treat and activate the work. This is where the process of electroplating most often goes wrong — weak activation shows up later as blistering or a patchy deposit, and the silver bath takes the blame.
5. Put a barrier on copper-bearing parts. Copper and copper-rich substrates take a nickel barrier or a compatible copper strike, then activation and a silver strike, then the main bath. Nickel and nickel-plated parts only need clean activation.
6. Plate at the stated current density on rack or barrel, with filtration and gentle movement running throughout.
7. Recover drag-out, rinse in two stages, apply the anti-tarnish step and dry. Run a test coupon through the whole sequence before releasing production.

Product Advantages

Cyanide out of the building. A non-toxic organic complexer replaces the cyanide ion, which removes the gas hazard that hangs over any cyanide bath that gets acidified by mistake. Effluent treatment simplifies in the same move: rinse streams from this line carry no free cyanide, so there is no hypochlorite oxidation stage to run and no chlorinated by-product to manage.

The cost comparison is annual, not per litre. The concentrate costs more per litre than commodity cyanide salts, and that is the figure you see first. Overall running cost usually lands lower once cyanide waste treatment, the safety equipment and the regulatory fees attached to holding cyanide inventory are counted in — but your own effluent rules decide the balance, so run the comparison on your figures rather than ours.

Anodes that keep their shape. A stable complex holds the silver in solution instead of letting it immersion-plate onto the anode. Anodes last longer, the bath stays balanced, and anodes come out for inspection rather than for replacement.

Wear resistance that lets you plate thinner. Because the deposit resists abrasion, a thinner silver layer often meets the same mating-cycle target. On a precious-metal line, that is where the material saving shows up.

Tolerance to real contamination. The bath copes with the organic contamination that pushes fussier proprietary systems into repeated carbon treatment, so production hours go to production instead of to bath cleaning.

It drops into the line you already have. Rack or barrel, standard tanks, standard rectifiers. Compared with any other metal plating process you might be converting from, there is no new equipment to buy and no tank layout to redesign.

Use Scenarios

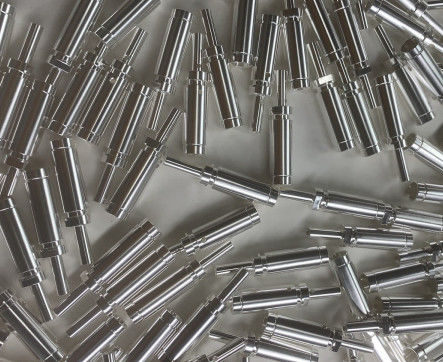

• Data and telecom connectors. Male and female terminals in 5G and network hardware go through a nickel plating barrier and then hard silver, so insertion force stays low while the contact rides out vibration and thermal cycling.
• Automotive switchgear. Window switches, ignition contacts and relay parts arc every time they toggle; a hard silver face resists the pitting that eventually shows up as a voltage drop.
• EV charging and high-current contacts. Connectors mated daily need a surface that will not gall — the difference between hard and soft silver is easiest to feel on a part that has already been cycled.
• Slip rings and brush faces. Rotating contacts abrade continuously; a deposit that holds its dimensional stability keeps resistance steady instead of drifting as the surface smears.
• Job shops running a silver plating service. Busbars on the rack and small fasteners in the barrel share one tank, and one-off or restoration work can be quoted without a cyanide protocol behind it.

Underplate & Line Compatibility

Copper and copper alloys need a diffusion barrier before the silver, because silver in direct contact with copper migrates and the joint weakens over time. Nickel plating is the usual answer: a nickel layer under the silver keeps the two metals apart and gives the silver something to bond to. Nickel substrates and nickel-plated parts only need clean activation.

Tanks are standard PP or PVC and the anodes are silver plate, so the plating solution does not call for a different tank, a new rectifier or a rebuilt busbar. Keep continuous filtration and light cathode movement running; they cost little and they even out the deposit across a mixed rack.

The compatibility point that catches people out runs the other way. If the same shop also runs cyanide chemistry, keep tanks, filters, racks and PPE separate, or clean and leach thoroughly between the two. Residues carried on a rack do more damage in a metal plating process than a bath that is slightly off specification.

Bath Maintenance & Control

• Analyse on a schedule, not on a hunch. Titrate silver metal and the complexer regularly and hold the ratio the bath was built on; drifting silver content is the usual reason a bright bath turns dull halfway through a shift.
• Carbonate build-up is less of a problem here. The chemistry tolerates carbonate accumulation that would force a dump on a simpler alkaline bath, which is part of why the plating solution lasts longer between rebuilds.
• Hold pH inside the window. Small drift is normal as work passes through; correct it before it reaches the edge of the range, not after the colour moves.
• Keep the temperature steady. Drift across the working range changes brightness and deposition rate at the same time, and once parts are plated the two effects are hard to tell apart.
• Filter continuously and keep the tank clean. Pull fallen parts promptly; a steel screw in the bottom of a silver tank is an impurity source no additive will fix.
• Log every addition. When something shifts, a record of what went in and when turns a guess into a diagnosis — and it keeps the process of electroplating repeatable between shifts.

Formulation Background

Fengfan has been formulating plating chemistry in Wuhan since 1984 — more than forty years of bath development, additive synthesis and pilot plating before a product reaches a customer's tank. The silver plating chemicals we ship today are one part of a much wider range built for the same job: making a surface treatment line predictable, batch after batch.

That range covers most of a plating shop's process chain. Brightener for SZ-30B sulfate zinc plating and bright alkaline zinc for rack and barrel plating (ZN 50) sit alongside brightener for cyanide-free alkaline zinc plating ZN-500. For aluminium work there is the Phoenix EB 204A-204B divalent tin salt electrolytic colouring additive and the Phoenix Seal 149-L and 149-T middle temperature sealing agents. Copper, protection and purification are covered by FI-970 bright acid copper, FF-4219 nano-protective for wood, stone and concrete, Nickel Purify P3 for bright nickel baths, and FF-116 chrome mist inhibitor.

We are a chemistry house, not a plating shop, so we do not compete with the silver plating service providers who run our baths. Our work is bath stability, deposit consistency and the process knowledge that goes with them — including support on the line after the order, when a defect needs a cause rather than a data sheet.

Safety, Storage & Documentation

• Alkaline and silver-bearing. The silver plating chemicals are strongly alkaline and based on silver nitrate; gloves, goggles and an apron belong at the tank, and splashes get rinsed immediately.
• No cyanide — and keep it that way. There is no free cyanide in the bath, so accidental acidification cannot release hydrogen cyanide, but never let cyanide drag-out, residue or rinse water into this tank, and never share a container between the two chemistries.
• Ventilate the tank. Local exhaust is standard around a silver line and keeps mist off surrounding surfaces.
• Store closed and dry. Keep containers sealed in a cool, dry, ventilated store, away from acids and direct sunlight, with labels legible.
• Route the rinses deliberately. During the process of electroplating, rinse water carries silver and complexer; send it to the alkaline waste stream you already treat, not to a cyanide detox line.
• Ask for the SDS. Current safety data sheets for each component come from your sales contact — read them before the first make-up, not after.

Ordering & Delivery

1. Tell us the line: tank volume, rack or barrel, substrate and target thickness. That is what we need to confirm which of the silver plating chemicals you need and in what quantity.
2. Set the quantity. Minimum order quantity varies by chemical and is confirmed with our sales team per order, so it is agreed when you enquire.
3. Choose the packing. We supply 10 kg/box; 25 kg or 50 kg/bag; 20 kg/25 kg/30 kg/200 kg/drum; 1000 kg/IBC drum. Match the size to what your metal plating process consumes in one charge — a drum that empties in a single make-up stays cleaner than one that sits half-used.
4. Payment is 100% T/T in advance.
5. Production lead time is 2 weeks.
6. Shipping is arranged per the terms agreed in the current contract.
7. After delivery, an inspection certificate is issued stating the batch number and the warranty period.
8. If you would rather plate trial parts first, ask your sales contact about sample availability and the current terms for your market.

Deposit Test Data & Reporting

Thickness is decided by current density and time, not by the drum. The plating solution supplies the silver; the layer on the part is the product of how much current you apply and how long the part stays in the bath. The 0.3–1.0 A/dm² window, together with throwing power that reaches internal threads and blind holes, covers both a light functional layer on small terminals and a heavier one on a switch contact. Send us the thickness on the drawing along with the substrate and whether you run rack or barrel, and we will come back with the current/time combination and the loading that holds it — faster than finding the number by trial on production parts.

Appearance belongs in the acceptance criteria, not in an adjective. The deposit is bright to semi-bright and stays uniform across the whole current-density window, so parts from the top and the bottom of the same rack and parts from a barrel load come out matched. Agree with your customer what "good" means before the first production lot: uniform bright silver, no bare patches, no burning at the contact points, no colour drift between batches.

Hardness has to be quoted with its measuring conditions. 120–180 HV is the band, and where a drawing calls for a microhardness figure, settle the test load, the indentation depth against the layer thickness, and which laboratory measures it. A reading taken on a thin layer with a heavy load tells you more about the substrate than about the silver.

Adhesion problems are answered before plating starts. Blistering and peeling almost always begin in activation, or in a missing nickel plating barrier on copper alloys. A bend test or a thermal cycle on a coupon that went through the same pre-treatment as production is the useful check, and it costs a fraction of a rejected lot.

Corrosion and porosity: fix the method first. Silver does not fail the way a zinc layer fails; what causes trouble is tarnish and porosity reaching down to the underplate. If a salt spray, nitric acid vapour or gel electrography clause applies, name the standard, the layer thickness and the substrate before the panels are plated, because two laboratories can disagree on the same part when the method differs. Salt-spray hours for a specific coating stack are answered against your clause by our technical team rather than published as one figure for the bath.

What you hand to your own customer. Every delivery is accompanied by an inspection certificate stating the batch number and the warranty period. If your customer's specification also names a test standard, a thickness record or a coupon result, raise it at the enquiry stage so the paperwork is arranged alongside the plating schedule instead of after the parts have shipped.

Silver Process Selection

Technical Support & Model Matching

Choosing the right match is where most sourcing decisions stall. As a trading supplier, we keep one point of contact from first enquiry to after-sales: tell us what you are making and the conditions you work under, and we shortlist the closest matches from our supplier network, compare specifications and arrange samples before you commit to a bulk order. If something does not behave as expected, we work with the supplying partner on the cause and a practical fix, and stay with the case until it is settled. Email, WeChat or WhatsApp enquiries get a reply within 24 hours.
