Barrel plating asks a copper bath to do something a rack never does: coat a tumbling load of small parts evenly, including the inside of through holes, while every part keeps changing position. This bright acid copper process was formulated for that duty. It is a two-component system — an R component and a Mu component, dosed separately — supplied as a blue liquid for barrel lines running acid copper.
Copper is rarely the finish a customer sees. It is the layer that makes the finish possible: it levels the substrate, builds thickness at lower cost than nickel, and gives the next deposit a smooth, adherent base. In most shops this bath sits directly under bright nickel plating, under tin or under a decorative topcoat, which is why the condition of the copper decides how the rest of the stack performs.

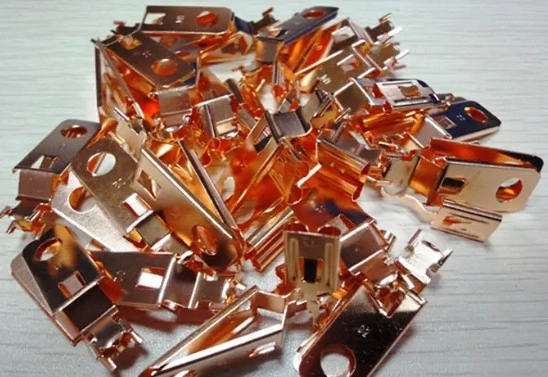

The parts it suits are the ones barrel lines actually carry: stamped contacts, screw-machine parts, fasteners, die-cast zinc fittings, small connectors and hardware that has to come out bright and uniform rather than merely covered — whether the line is an industrial operation electroplating metal at volume or a job shop running mixed work.
Dosing is deliberately simple: two organic components at the concentrations in the table below, with copper sulphate, sulphuric acid and chloride holding the inorganic side of the bath. The composition and optimum values are listed so your lab can compare them with the bath you run today.
If you are moving barrel work over from a cyanide copper or from a maintenance-heavy acid bath, tell us what you run now and we will walk through the differences with you before you commit.
| Parameter | Unit | Range | Optimum |
|---|---|---|---|
| CuSO4•5H2O | g/L | 60 - 100 | 80 |
| H2SO4 | %(v/v) | 9 - 12 | 10 |
| Cl⁻ | mg/L | 30 - 80 | 50 |
| FFI-22 R | mL/L | 4 - 6 | 5 |
| FFI-22 Mu | mL/L | 3 - 6 | 5 |
| Appearance | — | Blue liquid | — |
| Bath type | — | Bright acid copper | — |
| Plating method | — | Barrel | — |
A bright acid copper bath is mostly copper sulphate, sulphuric acid and water, and it stays predictable only when those three are measured rather than guessed. Titrate copper and acid on a fixed schedule, and watch chloride closely: the window is narrow, and drifting above it dulls the deposit while drifting below it roughens the surface and slows anode dissolution.
The two organic components are dosed separately, so treat R and Mu as two dials rather than one. Record what you add and when, alongside the ampere-hours the line has run, and the trend tells you whether the bath is consuming normally or being dragged out by the work.
Filtration does more for deposit quality than most operators expect. Continuous filtration on a cartridge or bag, with a clear tank, keeps particles out of the deposit and keeps the anode area clean. Bagged phosphorised copper anodes, correctly spaced, hold the copper concentration steady and stop anode sludge migrating into the work.
Every metal plating process is sensitive to what the previous tank leaves behind. Carry-over of cleaner, acid or brightener from another bath changes the balance of an acid copper tank quickly, so rinse thoroughly and keep the transfer path short.
Working temperature, cathode current density and cycle time are set by your barrel, load weight and target thickness. Send us those details and the technical team behind our plating services will confirm starting settings for your line before the first production load.
Buying a copper additive usually comes with questions the additive alone cannot answer: what to put underneath it, what to put on top, and what to do when a part fails. That is why we keep a wider range around this bath. Plating services questions about bright nickel plating, tin, zinc and zinc-nickel can be answered by the same technical contact who handles your copper, so the layers are planned together instead of one tank at a time.
On the electroless nickel plating side we supply the process chemistry and the troubleshooting that goes with it, including the high-phosphorus and high-sulphur systems used where corrosion and wear resistance matter. Stainless steel passivation, chrome-free sealing and aluminium conversion coatings sit in the same portfolio, and so do the pretreatment chemicals — degreasers, derusters and phosphating agents — that decide whether the copper ever gets a sound surface to bond to.
This matters most in shops that run several finishes on one site. Instead of four suppliers, four lead times and four opinions when something goes wrong, the process of electroplating stays in one conversation: one contact, one set of documents, one answer on compatibility.
Tell us the full stack — substrate, copper, topcoat, passivation — and we will flag the steps where the processes interact before you order.
Acid copper behaves differently in every barrel, and most coverage complaints come from the equipment rather than from the chemistry. Perforation size, load weight, rotation speed and the way current reaches the load all decide whether the solution inside the barrel is replenished fast enough. Before changing the additive dose, check that the barrel is not overloaded and that the contacts are clean.
The process runs in standard equipment: a perforated or slotted plating barrel, a rectifier sized for the load, bagged anodes and a filtration loop. Continuous filtration with gentle rotation keeps the bath uniform, and a lined tank with a properly sized pump keeps particles out of the deposit. On small work that is usually what separates a bright batch from a patchy one.
We also supply surface treatment equipment alongside the chemistry, so if you are building a new line or replacing a barrel, tank, rectifier and additive can be specified together rather than discovered to be mismatched afterwards.
If the line already exists, send photographs of the barrel and the settings you run. Reviewing them often explains a defect that looks like a chemical problem — and the same review applies when electroless nickel plating runs on the same site and shares the rinse train.
Anodised aluminium is chosen for the same reasons plated steel is: it has to look right and survive the environment it is sold into. The anodic oxide layer is hard, electrically insulating and coloured before sealing, which is why architectural profiles, consumer housings and machined components rely on it. We supply the anodizing chemicals together with the colouring and sealing steps, because a good oxide film can still fail at the seal.
Conversion coatings work differently. An alodine coating leaves a thin chromate film that keeps conductivity in place and gives paint or adhesive a keyed surface — the usual choice for aluminium parts that are assembled rather than displayed. On stainless steel, passivation removes free iron so the natural oxide layer re-forms evenly, which is the difference between a part that stains in service and one that does not.
Metal electroplating and aluminium finishing often sit in the same shop, on the same customer drawing. If your work includes aluminium and steel parts, tell us both, and we will check that the plating services and the post-treatment you buy are compatible with each other rather than chosen tank by tank.
Our commitment to sustainability is reflected in our eco-friendly surfactant range. These surfactants are formulated to improve performance in paints and other industrial applications while minimizing environmental impact, giving manufacturers a more responsible choice for reducing their carbon footprint. We pair quality with environmental stewardship and can help you select the right surfactant for your formulation.
Our plating, anodizing and surface finishing services support applications across automotive, electronics, aerospace and jewelry manufacturing. Common needs include improving durability and corrosion resistance, adding decorative finishes, and supporting lightweight components. Share your material, performance requirements and desired finish so we can help match the right process to your part.
Choosing the right match is where most sourcing decisions stall. As a trading supplier, we keep one point of contact from first enquiry to after-sales: tell us what you are making and the conditions you work under, and we shortlist the closest matches from our supplier network, compare specifications and arrange samples before you commit to a bulk order. If something does not behave as expected, we work with the supplying partner on the cause and a practical fix, and stay with the case until it is settled. Email, WeChat or WhatsApp enquiries get a reply within 24 hours.
Steel, zinc die-castings, brass and copper parts are all routine for an acid copper barrel bath, and the process is often chosen for mixed loads where several of these arrive in the same barrel. Copper will not rescue a badly prepared surface, though: parts need a sound cleaning and activation sequence before they reach the tank, and die-castings generally want a short strike rather than a direct heavy plate. Tell us your substrate mix and we will confirm the pretreatment steps for that load.
This product is tuned for the process of electroplating in a barrel, where solution exchange and current distribution behave quite differently from a rack. It will plate on racks, but you lose the balance the formulation was built around and the bright range narrows. If you need the same copper underlayer on rack work, ask us about the rack-oriented copper process in the range so each line runs chemistry suited to its own geometry.
Start with chloride and with what the work brings in. A chloride level drifting outside its window dulls the deposit or roughens it, and carry-over of cleaner or acid from the previous tank upsets an acid copper bath quickly. After that, look at the metal plating process itself: current per barrel, load weight, contact condition and rotation speed. Most dull batches trace back to one of those four rather than to the additive.
Yes — that is its main job. A levelled, stress-free copper layer gives bright nickel plating a smoother surface to build on, which usually means less nickel for the same final appearance, and it improves adhesion on die-castings and steel. Tin, gold and decorative alloy topcoats also bond well to it. Rinse thoroughly between the copper tank and the next one; acid drag-in is the usual cause of adhesion complaints at this interface.
Working temperature, cathode current density and plating time are set by your barrel, load weight and the thickness you need, and they are not fixed by the additive alone. Send us those details and we will confirm starting settings, then run one trial load and inspect coverage in holes and recesses before the line goes into production. Reviewing the first few bath analyses with our technical team is worth the time as well.
They are separate on purpose. In metal electroplating with a bright acid copper bath, the two components act on different characteristics of the deposit, so the ratio between them matters as much as the total. Keep each inside its range in the composition table, record every addition, and change one at a time so you can see what actually moved. Ask us if you need help reading a deposit defect back to the component that caused it.
