Fengfan Barrel Plating Bright Acid Copper Process Electroplating Additive FFI-22

Bright acid copper additive for barrel plating: fine-grained, stress-free deposits with through-hole coverage and simpler bath upkeep.
  • Fengfan Barrel Plating Bright Acid Copper Process Electroplating Additive FFI-22

Description

Product Overview

This is a two-component bright acid copper additive for barrel plating, supplied as a blue liquid and dosed into the bath as R and Mu. In a copper sulfate–sulfuric acid electrolyte it lays down a fine-grained, bright copper layer with even coverage over a full barrel load, including small parts with through-holes and recesses that are hard to reach on a rack. Barrel shops use it as the copper base across industrial metal plating work where the layer has to come out flat and consistent, batch after batch.

The system is built around control rather than correction. Brightness, levelling and grain refinement come from the balance between the two components, and the copper is stress-free as it leaves the bath, so parts can pass thermal cycling without blistering or cracking. Because the solution does not need long active-carbon treatment to stay in condition, the metal plating process keeps running with fewer interruptions and less tank downtime.

Bath Composition & Operating Window

ParameterUnitRangeOptimum
Copper sulfate pentahydrate (CuSO4·5H2O)g/L60 - 10080
Sulfuric acid (H2SO4)% (v/v)9 - 1210
Chloride ion (Cl⁻)mg/L30 - 8050
FFI-22 RmL/L4 - 65
FFI-22 MumL/L3 - 65
Product form—Blue liquid—
Additive type—Copper plating additive—
Process—Barrel plating, bright acid copper—
Brand—Fengfan—
Country of origin—China—

Performance Advantages

  • Even coverage through holes and recesses. The deposit stays uniform across the whole barrel load, so small parts with through-holes and blind recesses come out plated rather than shaded — the usual weak point of barrel work in metal plating services.
  • Bright and fine-grained as plated. A tight grain gives a smooth, reflective finish straight out of the barrel, cutting the polishing and rework that normally sits between copper and the next layer.
  • Stress-free copper for thermal cycling. No built-in stress means the layer holds through the heating and cooling of soldering, assembly and thermal cycle testing instead of blistering or lifting off the substrate.
  • A standard bath chemistry. It runs in a conventional copper sulfate–sulfuric acid bath with chloride control, so there is no new tank, rectifier or handling set-up — the process of electroplating copper stays familiar to your operators.
  • A clear dosing window with a defined optimum. R and Mu each have a working range and a stated optimum, which gives operators room to correct brightness or levelling without guessing at the addition.
  • Repeatable from barrel to barrel. The additive tolerates normal swings in copper and acid concentration, so a line running mixed batches still returns a consistent finish — the kind of stability that keeps a metal plating process predictable week to week.

Bath Make-Up & Daily Control

  1. Confirm the tank and the volume. Measure the working volume of the barrel tank and make sure it is clean, with no old copper sludge or loose scale that would seed roughness into the first load.
  2. Dissolve the copper sulfate. Add copper sulfate pentahydrate to warm water and stir until it is fully dissolved, then bring the level to roughly half the final volume before the acid goes in.
  3. Add the sulfuric acid slowly. Pour the acid in a thin stream with constant mixing — never in one go — and let the bath settle before topping up to final volume.
  4. Set the chloride. Bring the chloride ion into the working band in small steps; this is the quiet control that decides grain size and brightness in any metal electroplating bath, and it is far easier to add a little more than to take an excess out.
  5. Dose R, then Mu. Add the R component and mix it through before adding Mu, each at the level shown in the composition table. Keep the pair in balance — pushing one component to fix a symptom usually moves the problem rather than solving it.
  6. Run a trial barrel before release. Plate a representative load, check coverage inside through-holes and brightness across the whole load, and only then release the bath to production. Where a shop runs several part families, review the analysis and dosing with the plating services team at each changeover.

Solution Maintenance

The maintenance routine is deliberately short. Where many bright acid copper systems call for extended active-carbon treatment to strip organic breakdown products before brightness comes back, this process is formulated so that the bath holds its condition without that long cycle. On a barrel line that means fewer stopped tanks, less carbon handling and less solution to dispose of — and in the process of electroplating copper, downtime is usually the largest hidden cost.

Day to day, watch four numbers: copper sulfate, sulfuric acid, chloride and the two additives. Correct them by analysis rather than by eye. Chloride drifts fastest and is the one most often over-corrected, so add it in small steps and let the bath mix before judging the result. Additive consumption follows drag-out and throughput, which means a line running heavy loads uses more than a light one — the answer is a measured top-up, not a doubling. That discipline is what separates a stable metal electroplating bath from one that is permanently being rescued.

Keep the filtration and barrel movement the line already runs; nothing extra is needed. When the bath eventually needs a full clean-up or a carbon pass, book it as planned downtime and confirm the procedure with our technical team first, so the balance you have built up is not stripped out along with the contamination. Baths that are analysed on a fixed schedule keep their brightness month after month, whatever electroplating metal is in the barrel.

Barrel Plating Applications

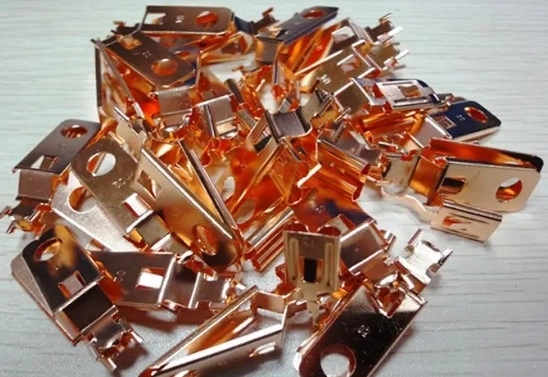

  • Connectors and PCB hardware. Small contacts, pins and board hardware with plated through-holes are the classic case: the barrel keeps turning the parts while the additive holds coverage even inside the holes — the point on which metal plating services for electronics are judged.
  • Automotive small parts. Terminals, fasteners, clips and sensor bodies that see heat during assembly gain from a stress-free copper base that will not lift when the part is soldered or potted.
  • Aerospace and instrument components. Small machined parts that go through thermal cycle testing need a copper layer with no stored stress — a routine requirement in metal electroplating for aerospace hardware, and one this process is built around.
  • Copper base before nickel and chrome. Die-cast, steel and plated parts that need a flat, bright copper layer under decorative nickel-chrome come out with a better base for the follow-on deposits — often the first difference plating services shops notice after switching.
  • Mixed job-shop barrels. Shops running several part families in one barrel get a repeatable finish without re-balancing for every job, even when the electroplating metal parts in the load change size and weight from day to day.

Ordering, Packing & Delivery

  1. Tell us what you run. Barrel size, part mix, substrate and target copper thickness — with that we can confirm whether this process suits your industrial metal plating line before a drum is ordered, and flag anything that needs a trial first.
  2. Agree the quantity. Minimum order quantity varies by chemical and is confirmed with our sales team per order, so a plating services shop can size the first drum to a trial and the repeat order to actual consumption.
  3. Choose the packing. 10 kg/box; 25 kg or 50 kg/bag; 20 kg/25 kg/30 kg/200 kg/drum; 1000 kg/IBC drum — pick the format that suits your drum handling and storage.
  4. Payment and lead time. Payment is 100% T/T in advance, and the production lead time is 2 weeks.
  5. Shipping and supply behind the order. Shipping runs per the terms agreed in the current contract. The additive is manufactured in Wuhan on a 67-acre site with around 7000 m² of floor space and an annual surface-treatment additive capacity of 3000–5000 t, which is what allows repeat international supply to hold its schedule.
  6. After delivery. An inspection certificate is issued after delivery stating the batch number and the warranty period — keep it with the batch record for traceability.

Operating Parameters & Cycle Time

  • Temperature drives the whole bath. Agree the starting temperature with us when you plan the make-up — it depends on your barrel, the part mix and how much copper each cycle has to lay down. A warmer bath deposits faster but consumes the Mu component quicker and can coarsen a fine grain; a cold bath is slow and leaves recessed faces short of copper.
  • Set cathode current density from the surface area of the load, not the size of the barrel. Two barrels of the same volume can need very different currents once one holds small dense parts and the other holds thin pressings. Judge the setting by the parts: burnt, dull edges on the outer layer mean too much current, while grey or shaded faces in the middle of the load mean too little.
  • Cycle time follows the thickness you need. Decide the copper thickness for each part family and set the time from the deposition rate at your current density. Do not stretch the time to be safe — read the thickness on the first load and adjust, because an over-thick layer on small parts can bridge holes and slow the next step.
  • Barrel rotation and fill level decide coverage. The load has to tumble so every face meets the solution and the contact points keep changing. An overfilled barrel barely moves and leaves contact marks and patchy plating; one turning too fast dents thin-walled parts. Confirm the rotation setting with us along with the fill weight.
  • Write the settings down per part family. Temperature, current density, time, barrel speed and load weight belong on the route card, so the next shift repeats the run instead of re-inventing it — and so a batch that looks wrong can be traced back to a changed number within minutes.
  • Ask us for the starting window. Send the barrel size, part mix, substrate and target thickness, and we will reply with the temperature, cathode current density and cycle time to start from, then review the first production barrel with you. That written starting point is what keeps the metal plating process repeatable from the first drum onward.

Equipment & Impurity Control

Equipment itemWhat to set upWhy it matters
Tank liningAcid-resistant lining such as PVC, PP or rubber-lined steel; confirm the material with us before fabricationDilute sulfuric acid attacks mild steel and puts iron and copper sludge straight into the bath
FiltrationContinuous filtration, sized so the full tank volume passes through the cartridges regularlyFine grain and brightness depend on clean solution; particles that slip past the filter become the nodules and rough patches that later show up across industrial metal plating
AnodesPhosphorised copper anodes in anode bags, with anode area matched to the loadSteady anode dissolution holds the copper concentration and keeps anode sludge out of the barrel
RectifierLow-ripple DC with headroom above the current the largest load drawsRipple and a rectifier run at its limit give dull, burnt or uneven deposits that no additive can correct
Barrel and contactsClean danglers and contact points, clear perforations, sound barrel panelsContact resistance and blocked holes are the usual cause of unplated patches in a barrel load
Ventilation and PPEEdge exhaust at the tank, acid-resistant gloves, apron and eye protectionSulfuric acid mist is the main handling hazard on an acid copper line
Impurity watch listIron from poorly rinsed or pickled parts, organic breakdown from overdosing, chloride creepIron dulls the deposit and consumes additive; correct it by analysis rather than by pushing the other component harder

Typical Use Scenarios

FFI-22 is used in electronics manufacturing plants that build printed circuit boards and connectors, where it serves as a critical additive for uniform copper plating across batches, including barrel plating of complex geometries and through-holes. Its capacity to produce fine-grained, bright copper deposits with minimal stress supports compliance with the electrical performance standards that apply to your process. Stable dosing and the elimination of prolonged active carbon treatments make plating bath management simpler within existing workflows. On automated lines, working alongside advanced electroplating equipment suppliers helps hold consistent quality and throughput at production volumes. Automotive and aerospace component manufacturers also use FFI-22 in their surface finishing systems, and the exact deposit requirements for those applications should be confirmed with our technical team before you set bath parameters.

Technical Support & Model Matching

Choosing the right match is where most sourcing decisions stall. As a trading supplier, we keep one point of contact from first enquiry to after-sales: tell us what you are making and the conditions you work under, and we shortlist the closest matches from our supplier network, compare specifications and arrange samples before you commit to a bulk order. If something does not behave as expected, we work with the supplying partner on the cause and a practical fix, and stay with the case until it is settled. Email, WeChat or WhatsApp enquiries get a reply within 24 hours.

FAQ

What are the components of this bath, and what does each one do?

The bath is a copper sulfate–sulfuric acid electrolyte with controlled chloride, plus the two additive components, R and Mu. Copper sulfate supplies the copper that is deposited, sulfuric acid carries the current and keeps the bath conductive, and chloride is the fine control on grain size and brightness — too little and the deposit dulls, too much and it coarsens. R and Mu work as a pair: one drives brightness, the other governs levelling and distribution, which is why they are dosed together rather than topped up separately. The working range and optimum for each are in the composition table above, and building the first bath at the optimum is the quickest route to a stable metal plating process.

Can the process be adapted to our parts and our existing bath?

Yes. The usual levers are the balance between R and Mu, the chloride level, and the way the bath is analysed and topped up. Small components with tight through-holes usually need the distribution side pushed slightly; heavy loads with a lot of surface area may run at a different additive level. Send the part drawing or a photo, the substrate and a recent bath analysis, and our technical team will recommend settings for your industrial metal plating line before you commit to a production trial.

What temperature, current density and cycle time should we run?

Bath chemistry and additive ratios are fixed by the composition table, but temperature, cathode current density and plating time are set by the part, the barrel load and the copper thickness you need. There is no single figure that suits every barrel, and running another shop's numbers is how a good bath gets blamed for a bad part. Tell us the barrel size, the part mix and the target thickness, and we will confirm a starting window for your line — the process of electroplating copper is far more forgiving once those three variables are set deliberately.

Will the copper hold up to soldering and thermal cycling?

That is the main reason buyers choose this process. The deposit is stress-free, so when a part is soldered, potted or put through a thermal cycle test the copper does not blister, crack or lift from the substrate. Parts that have already been through heat are the ones most likely to expose a stressed deposit, so a barrel trial followed by your own thermal cycle is the clearest proof. For electroplating metal parts that see heat downstream, this is the property to test first.

What goes on top of the copper layer?

Copper is normally an intermediate layer rather than the final finish. On steel, die-cast and plated substrates it is followed by nickel and then chrome or another decorative top coat, and on electronics work it is the conductive base for the deposits that follow. Because this process produces fine-grained, level copper, the layers above sit flatter and need less polishing — which is why metal plating services shops use it as the base rather than the finish.
