The Hidden Costs of Foam and Poor Coverage in Acid Zinc Plating
Five Field-Tested Strategies for Superior Plating Performance
Practical Implementation Guide: From Lab to Production Line
Conclusion: Achieving Low-Foam, High-Efficiency Plating
Before implementing solutions, it’s important to understand why these common problems harm your operation. They’re not minor annoyances but major drivers of cost and quality failures.
Excess foam in an acid zinc bath signals an unbalanced system and causes a range of problems.
Foam acts as a barrier, slowing drainage and increasing drag-out of costly plating solution. This wastes chemistry and adds strain to wastewater systems. In barrel plating, foam gets trapped in the barrel, preventing proper tumbling and causing uneven deposits. For rack plating, foam clings to parts during removal, interfering with rinsing and leading to staining or passivation failures.
Foam bubbles can stick to the workpiece, blocking zinc deposition and causing pitting, voids, or bare spots, particularly in recessed areas. These defects lead to costly rework or scrap.
Throwing power measures the plating bath’s ability to deposit zinc evenly on complex shapes. Poor throwing power is common in acid zinc plating when process parameters aren’t optimized.
Low throwing power results in thick deposits on high-current density (HCD) areas, like edges, while low-current density (LCD) areas, such as recesses and threads, receive too little zinc. This forces longer plating times (wasting energy and zinc) or leads to failed corrosion tests, requiring stripping and replating.
High zinc metal concentration in the bath can worsen throwing power issues. An overly conductive bath deposits zinc too quickly on HCD areas, leaving LCD areas undercoated. This is known as burnout or thick-plating in high-current zones.
The performance of an acid zinc bath depends on its organic additive package of carriers, brighteners, and wetting agents. Imbalances in these components often cause foam and poor coverage.
By strategically selecting additives and optimizing key parameters, you can directly address the root causes of foaming and poor coverage. Here are five practical, actionable strategies incorporating products from industry leaders.
Instead of relying on a single, all-purpose carrier, a dual-carrier system allows you to independently control for throwing power and foam generation. This synergistic approach delivers performance that a single additive often cannot match.

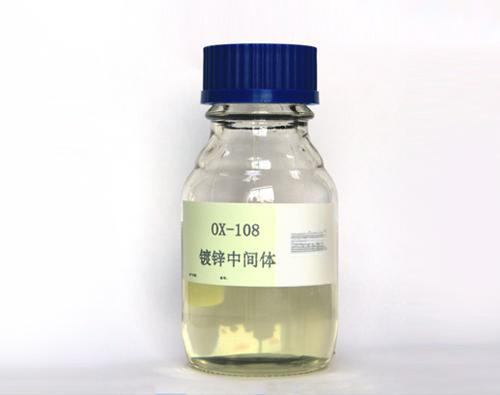

Fengfan OX-108 is a sulfonic ammonium salt anionic surfactant designed as a high-performance deep plating carrier for potassium chloride zinc baths. Its primary function is to enhance throwing power, pushing the zinc deposit into the most challenging LCD areas. It refines the grain structure, ensuring that even deep recesses receive a sufficient, protective layer of zinc. Its excellent compatibility with common brightener intermediates like OCBA and BAR makes it a versatile foundation for any high-specification formulation. By establishing a strong coverage baseline with OX-108, you ensure the fundamental quality of the deposit is met across the entire part.
https://www.plating-chemistry.com/

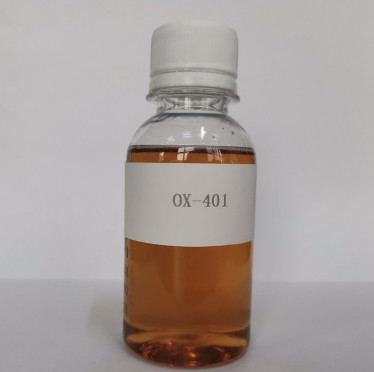

Once coverage is established, the next challenge is managing foam, especially at high agitation or in air-agitated lines. This is where OX-401, a specifically engineered low-foam anionic surfactant, comes in. Unlike general-purpose wetting agents that can generate copious foam, OX-401 provides the necessary surface tension reduction without creating a stable foam blanket. Pairing it with OX-108 allows you to run the bath at higher speeds and with more vigorous agitation, improving plating efficiency and throughput without the risk of foam-related defects. This combination directly tackles the two biggest challenges simultaneously: coverage and efficiency.
In some formulations, the main brightener can be difficult to dissolve or may contribute to foaming when combined with standard wetting agents. A specialized, multifunctional additive can solve this complex issue.

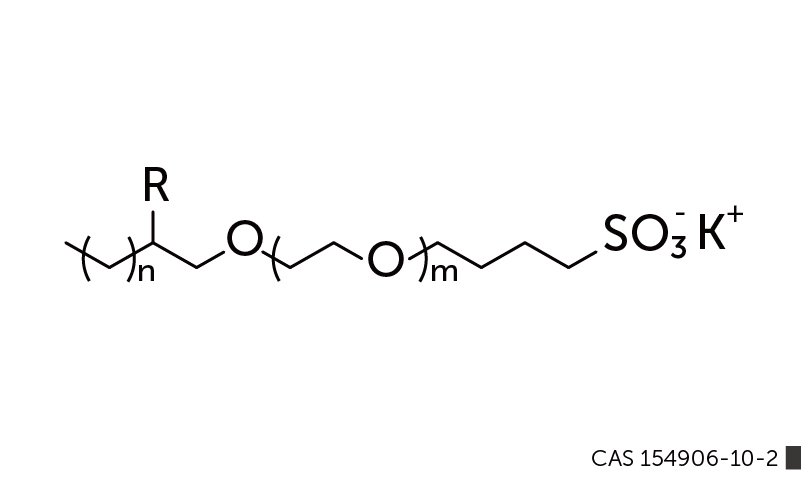

Hopax EA 15-90 is a unique anionic surfactant that serves as both a low-foam wetting agent and a carrier. Its most significant advantages are its complete lack of a cloud point and its stability across a very wide pH range. A cloud point is the temperature at which a surfactant becomes insoluble, causing the bath to turn cloudy and lose effectiveness. The absence of a cloud point in EA 15-90 means it remains effective even as the bath temperature fluctuates, preventing unexpected performance drops. Furthermore, its chemical structure helps to solubilize difficult main brighteners, keeping the bath clear and stable. For operations struggling with brightener drop-out or temperature-induced foaming, EA 15-90 offers a robust, all-in-one solution.
Process control is just as important as chemical selection. As previously mentioned, high zinc concentration is a primary cause of poor deposit distribution. A systematic reduction, paired with a high-performance carrier system, can yield dramatic improvements.
Many platers run their acid zinc baths at concentrations of 4.5 ounces per gallon (opg) or higher, believing it provides a buffer. However, this often leads to poor LCD coverage and wasted zinc. By gradually lowering the zinc metal concentration into the 3.2–3.8 opg (24-28 g/L) range, you can significantly improve throwing power. At this lower concentration, the bath is less prone to burning in HCD areas, allowing the zinc ions more time to migrate and deposit in the LCD regions. This strategy is only effective when supported by a strong carrier like the Fengfan OX-108 and OX-401 combination, which ensures the LCD areas remain active and receptive to plating even at lower metal levels.
For large-scale operations or companies with multiple plating lines, consistency is paramount. An integrated system from a single supplier ensures that all components are designed to work together harmoniously.
Atotech is a leader in providing complete acid zinc and mixed chloride zinc electroplating systems, such as their Zylite® and Protolux® families. These systems are not just a collection of additives; they are fully engineered processes. The benefits include predictable performance, simplified troubleshooting, and guaranteed compatibility with their own extensive line of post-treatment passivates and sealers. By adopting a full system, you eliminate the guesswork involved in mixing and matching components from different suppliers. This approach is ideal for achieving process standardization across multiple facilities, ensuring that a part plated in one plant is identical to a part plated in another. Their offerings often include modern, environmentally conscious options like borate-free systems, which cater to evolving regulatory requirements.
Your plating process is only as reliable as your supply of raw materials. Relying on a single source for a critical surfactant can expose your operation to significant risk from supply chain disruptions.
https://www.univarsolutions.com/
A sound strategy involves diversifying your supply chain. A global distributor like Univar Solutions provides access to a broad portfolio of surfactants, including their Caflon® Anionics line. This ensures you have qualified, alternative sources for critical components. Building a relationship with a major distributor provides a buffer against single-manufacturer shortages, transportation delays, or geopolitical issues. It allows for strategic sourcing, quality assurance across a wide range of products, and the logistical support necessary to keep your production lines running without interruption. This is a crucial, though often overlooked, aspect of maintaining an efficient and reliable plating operation.
Adopting these strategies requires a methodical approach. Follow these steps to ensure a smooth and successful transition.
If foam is your primary issue, especially in barrel lines or air-agitated tanks where solution turnover is slow, start by evaluating a dedicated low-foam surfactant. Add OX-401 or Hopax EA 15-90 to a sample of your current bath and observe the foam level and stability under agitation. A simple beaker test can provide a quick indication of its effectiveness.
To validate the dual-carrier approach, conduct a Hull cell analysis. Prepare two panels: one with your existing formulation and another with your formulation modified with the Fengfan OX-108 and OX-401 combination. Compare the appearance of the deposit across the entire current density range. Look for improved brightness and coverage in the extreme low-current density corner of the panel.
Implement zinc concentration reduction gradually. Lower the setpoint from your current level, for example from 4.5 opg down to 4.0 opg, and run production for a few days while closely monitoring LCD coverage and salt spray results. Once performance is confirmed, continue to adjust downwards in small increments until you reach the optimal 3.2–3.8 opg range.
If you are planning a new plating line or a major overhaul of an existing one, it is the perfect time to consider a complete system. Contact a provider like Atotech for a process audit and a pilot test. The upfront investment in a standardized system often pays for itself through improved yield, reduced chemical consumption, and lower labor costs for troubleshooting.
Proactively contact distributors like Univar Solutions to discuss your key surfactant needs. Request samples from their Caflon® line or other equivalent products to qualify them as secondary sources. Do not wait for a supply crisis to start this process.
Transforming your acid zinc plating line from a source of frustration to a model of efficiency is achievable. It requires a move away from reactive troubleshooting towards a proactive, strategic approach to chemistry and process control. Remember these five key principles:
By applying these strategies, you can resolve long-standing issues with foam and coverage, leading to higher quality, faster throughput, and a more profitable operation. This level of process optimization is made more achievable with advanced, purpose-built carriers from specialists like Fengfan.
